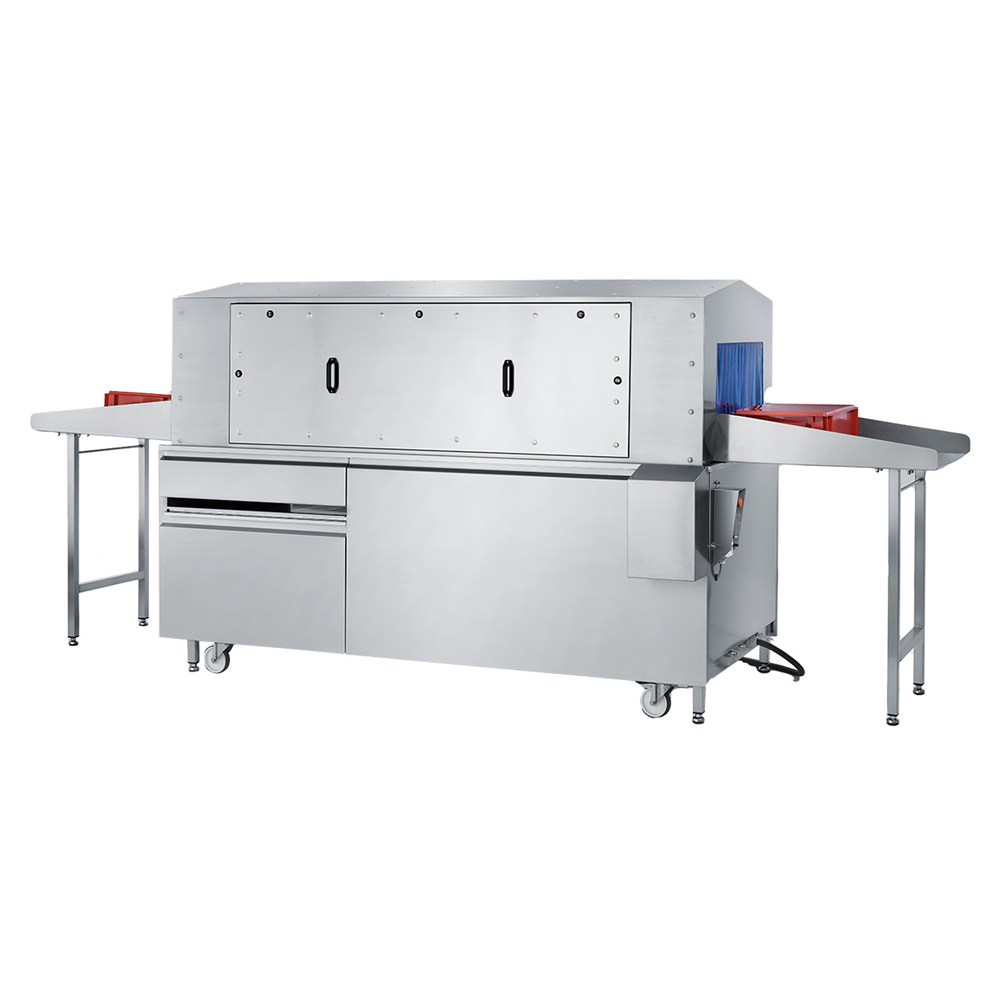

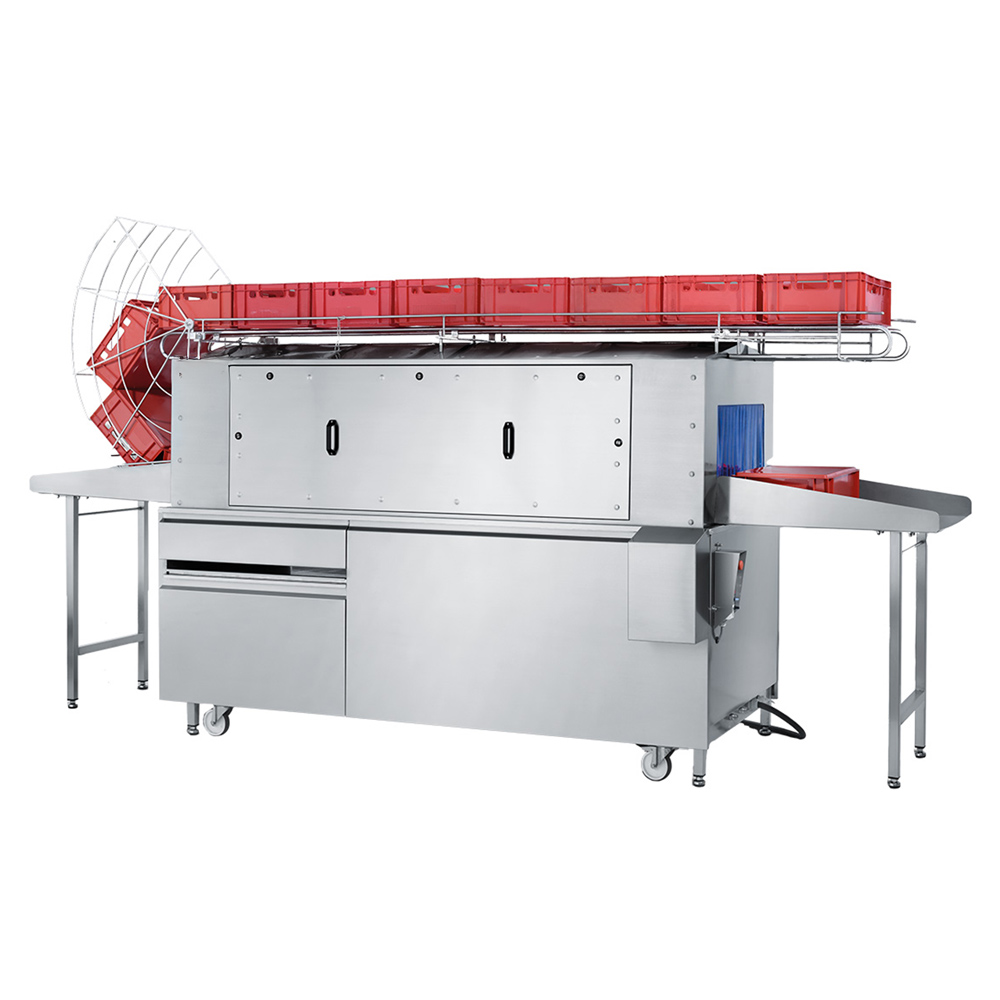

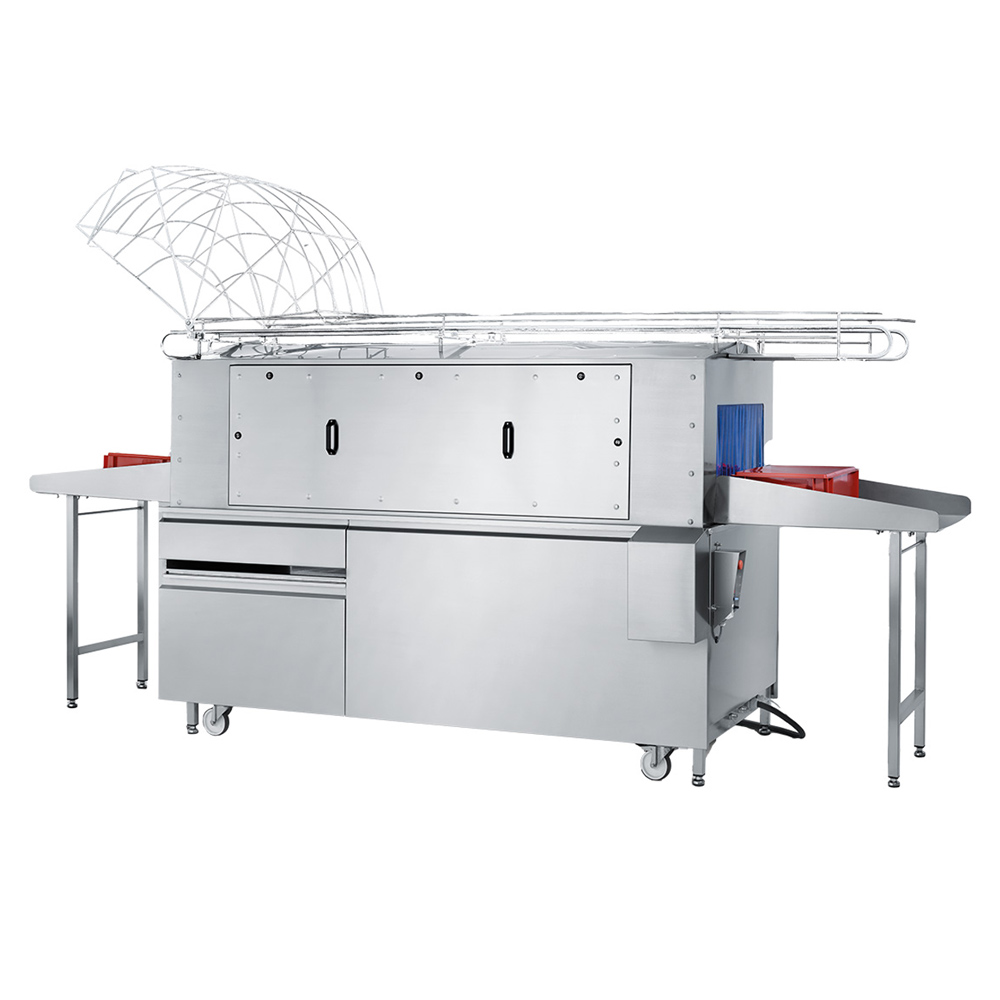

Euro-standard crate washing system for Euro-standard crates: 500 per hour

The Euro-standard crate washing system, capable of processing 500 crates per hour, is a high-performance cleaning solution for large meat processing plants, dairies, industrial bakeries, logistics centers, and companies in the food industry. With a capacity of up to 500 Euro-standard crates per hour, it is suitable for high crate volumes.

The Euro-standard crate washing system, which processes 500 crates per hour, stands out for the following features:

• High throughput: up to 500 crates per hour
• Separate main wash zone and rinse zone
• Main wash cycle with water up to 45 °C
• Thermostat-controlled heating via an 18-kW heater
• Detergent can be added to the wash water as needed
• Rinse with hot water supplied on site at 85 °C or higher
• Thermal Disinfection for High Hygiene Standards
• Adjustable throughput speed for varying degrees of soiling
• Powerful water circulation for an intensive wash cycle
• Continuous renewal of the circulating water through backflushing
• Removable filter for larger particles of dirt
• 600 mm passage width for Euro-standard crates
• Maintenance-friendly design with a removable cover and inspection opening
• Made of 1.4301 stainless steel

In the main wash zone, the Euro-standard crates are cleaned with recirculating water heated to up to 45 °C. The thermostatically controlled 18-kW heating system maintains a constant wash temperature. For heavier soiling, detergent can be automatically dispensed via the optional dosing system.

The crates are then thoroughly rinsed and thermally disinfected in a separate rinse zone using hot water supplied by the customer at a temperature of 85 °C or higher. The rinse water continuously replenishes a portion of the recirculating water, while a removable filter traps coarse residues.

The throughput speed can be adjusted to the degree of contamination and the production process using speed control. The 1.4301 stainless steel construction is hygienic, corrosion-resistant, and designed for continuous industrial use. Removable cover panels and an access door facilitate cleaning and maintenance.
